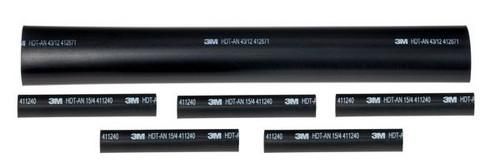

Heat shrink connection set, suitable for all plastic cables used in the low voltage range. They can be laid underground, in above-ground outdoor systems as well as in indoor systems. The individual hoses are coated on the inside with a thermoplastic adhesive that melts when heated and penetrates into all uneven areas and cavities. They meet the requirements of 0278 Part 623. Inner diameter of outer hose before/after shrinking 27/8 mm, inner diameter of inner hose before/after shrinking 12/3 mm. Max. capacity: 5 x 1.5 - 5 x 6 mm
| Property | Value |
| Nominal conductor cross-section: | 1.5 to 6 mm² |
| Number of conductors: | 5 |
| Halogen-free: | yes |
| Design: | Heat shrink |
| Mining approval: | no |
| With concentric shielding: | yes |
| For connecting paper-insulated cables with plastic-insulated cables: | no |
| Suitable for: | N(A)YCWY |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
Features
Number of conductors
5
Nominal conductor cross-section
1.5 to 6 mm²
Rated voltage U0/U (Um)
0,6/1 (1,2) kV
With concentric shielding
Yes
For connecting paper-insulated cables with plastic-insulated cables
No
HAB
91-AH-20.5N
Manufacturer
HAN
7000099517
GTIN
8712403581681
Version
Heat shrink
Mining license
No
Suitable for
N(A)YCWY
Halogen free
Yes
