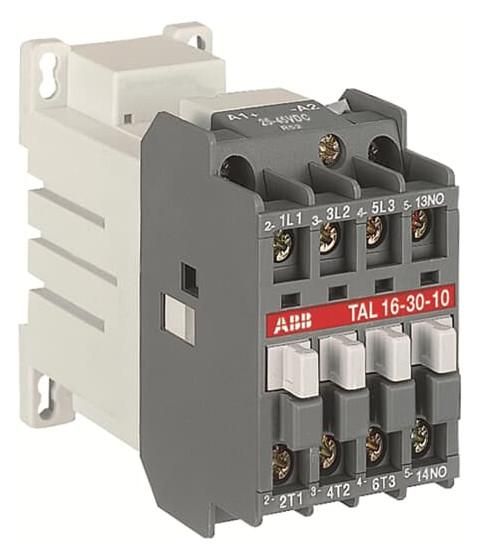

ABB Stotz-Kontakt 1SBL183061R5110 TAL16-30-10-51 Contactor

The 3-pole TAL16 contactors are mainly used to control three-phase motors and in general to control power circuits up to 690V AC or 220V DC. The contactors can also be used for many other applications such as insulation, capacitor switching, lighting. The 1-level, 3-pole contactors of the TAL... series are designed in block construction., - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, the installation of additional front or side auxiliary contact blocks is possible., - Control circuit: DC operation with permanent magnet circuit and wide voltage range., The polarity on the coil connections (A1+ and A2-) must be observed., TAL contactors have railway approval.
