The manually operated switch disconnectors of the OT series are unique in their variety and flexibility. The OT series switches currents from 16 A to 4000 A and at voltages of up to 690 V AC. Despite their high performance, the switches are very easy to operate and take up little space. The freely selectable installation position enables a high level of flexibility and efficiency in planning. The OT switch disconnectors can be used as main switches in the main or sub-distribution board. ABB also offers a wide range of accessories for this series, such as extension shafts, handles and terminal covers. This means that OT switch disconnectors can also be used in the most demanding applications.
| Property | Value |
| Number of poles: | 3 |
| Rated continuous current Iu: | 60 A |
| Max. Rated operating voltage Ue at AC: | 750 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Device design: | Built-in device, plug-in technology |
| Design of the actuating element: | without |
| Suitable for floor mounting: | no |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | yes |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 1 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 750 V |
| Rated continuous current at AC-21, 400 V: | 63 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 45 A |
| Protection class (NEMA): | 1 |
Features
HAB

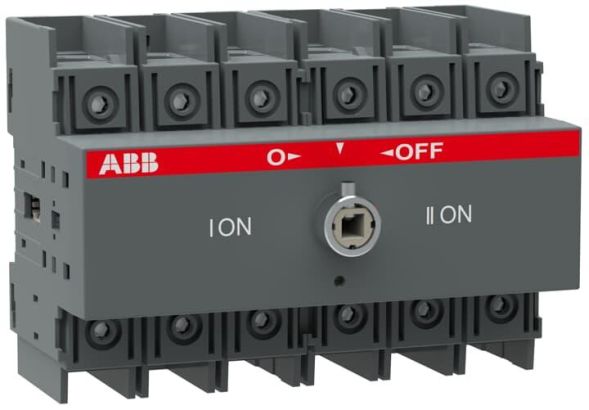

OT60F3C 3-pl.60A without handle and shaft
Manufacturer
HAN
1SCA105078R1001
GTIN
6417019392080
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Without
Rated operating voltage
750V
Rated continuous current Iu
60A
Rated continuous current at AC-21, 400 V
63 A
Rated continuous current at AC-23, 400 V
45A
Rated short-time withstand current Icw
1kA
Color of the actuator
Black
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device plug-in technology
Max. rated operating voltage Ue at AC
750V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Protection class (IP), front
IP20
Protection class (NEMA)
1
Voltage release optional
No
Lockable
Yes
