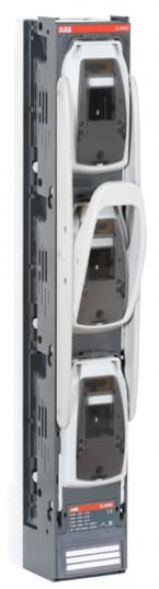

1SEP622763R0001 ZLBM1-HC-3P-V 3-pl.schaltb Low fuse switch disconnector Manufacturer article number: 1SEP622763R0001, Manufacturer article name: ZLBM1-HC-3P-V 3-pl.schaltb Low
| Property | Value |
| Rated continuous current Iu: | 250 A |
| Protection class (IP), front: | IP30 |
| Number of poles: | 3 |
| Design as main switch: | no |
| Design of the actuating element: | other |
| Type of connection main circuit: | Bolt connection |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | no |
| With fuse monitoring: | no |
| Version as EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 100 kA |
| Version as safety switch: | no |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | yes |
| Suitable for fuse links: | NH1 |
| Position of the actuating element: | front |
| Integrated motor drive: | no |
| Optional motor drive: | no |
| Cable entry: | Bottom (underside) |
| Equipped with connectors: | no |
Features
HAB
ZLBM1-HC-3P-V 3-pl.switchable Low
Manufacturer
HAN
1SEP622763R0001
GTIN
3800161653704
Connection type main circuit
Bolt connection
Designed as main switch
No
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Design of the actuating element
Other
Conditional rated short-circuit current Iq
100kA
Rated continuous current Iu
250A
Suitable for floor mounting
No
Suitable for front mounting
No
Suitable for busbar construction
Yes
Suitable for fuse inserts
NH1
Cable entry
Floor (bottom)
Max. rated operating voltage Ue at AC
690V
With fuse monitoring
No
Equipped with connectors
No
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Position of the actuator
In front
Protection class (IP), front
IP30
