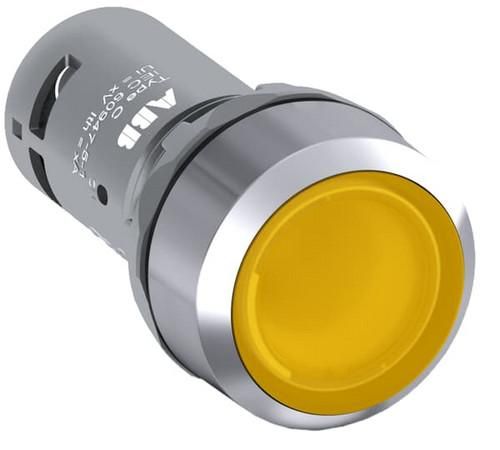

Control and signaling devices, series: Plastic Compact. A most efficient solution that reduces installation time and costs. The compact series has a very high dust and water resistance. The number of order numbers reduced to the necessary makes selection easier and saves time. The all-in-one design enables quick and easy installation. The following standards and approvals are met: IEC/EN 60947-1: Low-voltage switchgear and control devices - Part 1: General rules / IEC/EN 60947-5-1: Low-voltage switchgear and control devices - Part 5-1: Control devices and switching elements - Electromechanical control devices / IEC/EN 60947-5-5: Low-voltage switchgear and control devices - Part 5-5: Control devices and switching elements - Electrical emergency stop device with mechanical latching function. The complete list of all technical data and met standards can be found in our product data sheets.
| Property | Value |
| Normally open: | 1 |
| Momentary: | yes |
| latching: | no |
| Suitable for lighting: | yes |
| Lens design: | round |
| Button color: | yellow |
| Lamp supply voltage: | 300 V |
| Hole diameter: | 22 mm |
| Button design: | flat |
| Color Front ring: | Chrome |
| Protection class (IP): | IP67/IP69K |
| With front ring: | yes |
| Design of the electrical connection: | screw connection |
| Material of the front ring: | metal |
