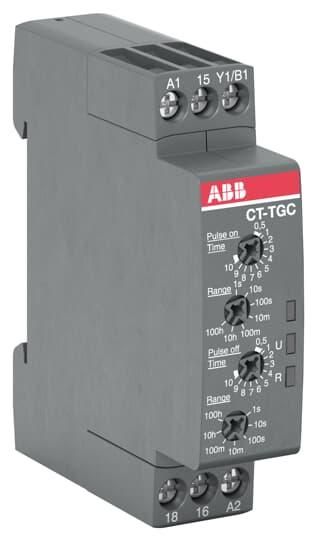

ABB Stotz-Kontakt 1SVR508160R0000 CT-TGC.12 1We 24-48VDC/24-240VAC time relay

Description

Features

Reviews

The CT-C series time relays combine high quality and excellent performance with low costs. All important time functions are offered here in the space-saving 17.5 mm width. The series includes 11 single or multi-function devices with a time range of 0.05s to 100h. Their wide voltage input enables flexible use worldwide.

Property	Value
Number of outputs, undelayed, changeover contact:	1
Number of outputs, delayed, changeover contact:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 48 V
Width:	17.5 mm
Depth:	63 mm
Height:	70 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
Function on-delayed:	no
off-delayed function:	no
on-delayed function:	no
off-delayed function:	no
star/delta function:	no
pulse-forming function:	no
flashing function starting with pause, fixed time:	no
flashing function starting with pulse, fixed time:	no
clocking function starting with pause, variable:	no
clocking function starting with pulse, variable:	no
With semiconductor output:	no
Nominal current:	4 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
