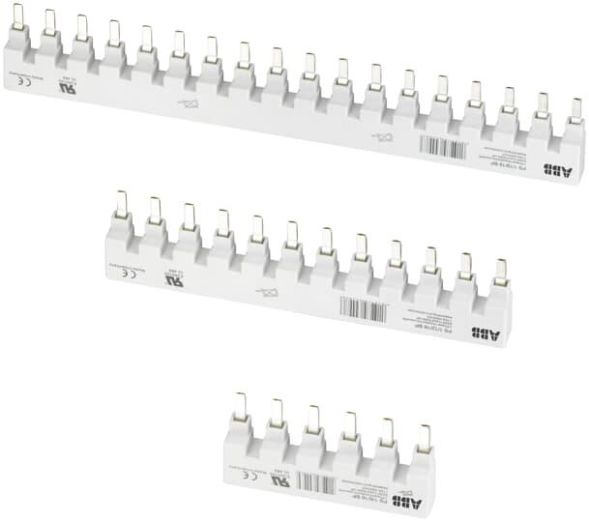

The CB series phase busbars meet the requirements of UL508. They are therefore suitable for safe and economical cross-wiring of circuit breakers, residual current devices and other modular installation devices. The following points must be observed for the correct selection: - number of phases, - number of pins, - cross-section per phase, - use of auxiliary switches (H)
| Property | Value |
| Number of poles: | 39 |
| Number of phases: | 3 |
| Length: | 1005 mm |
| Cross-section: | 18 mm² |
| Rated continuous current Iu: | 80 A |
| Max. Rated operating voltage Ue: | 600 V |
| Insulated: | yes |
| Suitable for number of devices: | 13 |
| Suitable for devices with N conductor: | no |
| Rated short-time withstand current Icw: | 10 kA |
| Suitable for devices with auxiliary switch: | yes |
| Design of the electrical connection: | pin |
Features
Suitable for devices with auxiliary switch
Yes
Suitable for devices with N conductor
No
Suitable for number of devices
13
HAB
PS 3/39/18 H CB 3Ph. 39Pins 18qmm
Manufacturer
HAN
2CDL230508R3918
GTIN
4016779906890
Number of phases
3
Design of the electrical connection
Pen
Rated continuous current Iu
80A
Rated short-time withstand current Icw
10kA
Isolated
Yes
Length
1005 mm
Max. rated operating voltage Ue
600V
Number of poles
39
Cross-section
18 mm²
