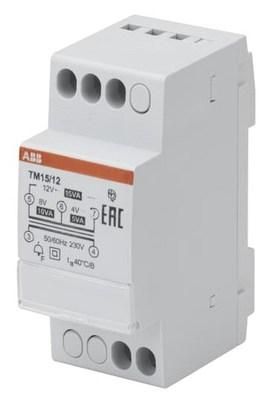

2CSM228735R0802 TM15/12 15VA 12VAC bell transformer Manufacturer article number: 2CSM228735R0802, Manufacturer article name: TM15/12 15VA 12VAC
| Property | Value |
| Type of transformer: | Standard bell transformer |
| Primary voltage: | 230 V |
| Width in pitch units: | 2 |
| Secondary voltage 1: | 4 V |
| Secondary voltage 2: | 8 V |
| Secondary voltage 3: | 12 V |
| Secondary current 1: | 3.75 A |
| Secondary current 2: | 1.87 A |
| Secondary current 3: | 1.25 A |
| Suitable for flush-mounted installation: | no |
| Short-circuit proof: | yes |
| Suitable for surface-mounted installation: | no |
| Length: | 65 mm |
| Width: | 35 mm |
| Height: | 85 mm |
| Max. output power: | 15 W |
| Suitable for series installation: | yes |
| Temperature protection: | no |
| Max. Output current: | 3.75 A |
| Max. power dissipation: | 4 W |
| With on/off switch: | no |
Features
Secondary voltage 1
4 V
HAB
TM15/12 15VA 12VAC
Manufacturer
HAN
2CSM228735R0802
GTIN
8012542287353
Width
35 mm
Width in pitch units
2
Suitable for series installation
Yes
Height
85 mm
Length
65 mm
With on/off switch
No
