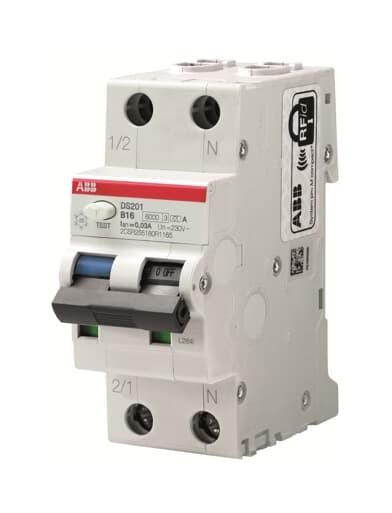

Residual current circuit breakers (RCBOs) offer protection for people and property, as well as protection against electrically ignited fires in accordance with DIN0100-410 and DIN0100-530. They guarantee protection of single-phase circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA against earth. As well as fault protection (protection against indirect contact), additional protection (with I n 30 mA) and fire protection (with I n 300 mA). They meet the product standards IEC/EN 61009-1 (VDE 0664-20), IEC/EN 61009-2-1 (VDE 0664-21). Areas of application are household, commercial and industrial applications. The extensive range of accessories offers you everything you need for your installation tasks. Numerous approvals make the DS201 suitable for worldwide use. , Rated switching capacity according to IEC/EN 61009 Icn = 6 kA. , RCBO DS201 A Type A is 1-pole protected (LS), 2-pole switching.
| Property | Value |
| Tripping characteristic: | C |
| Rated current: | 13 A |
| Rated residual current: | 0.03 A |
| Rated voltage: | 230 V |
| Frequency: | 50/60 Hz |
| Number of poles (total): | 2 |
| Width in modular spacing: | 2 |
| Residual current type: | A |
| Installation depth: | 69 mm |
| Rated breaking capacity according to IEC 60947-2: | 10 kA |
| Protection class (IP): | IP2X |
| Overvoltage category: | 3 |
| Pollution degree: | 2 |
| Switching neutral conductor: | yes |
| Number of protected poles: | 1 |
| Suitable for flush-mounted installation: | no |
| Voltage type: | AC |
| False tripping protection: | no |
| Rated breaking capacity according to EN 61009: | 6 n/a |
| With locking device: | no |
| Ambient temperature during operation: | -25 to 55 °C |
