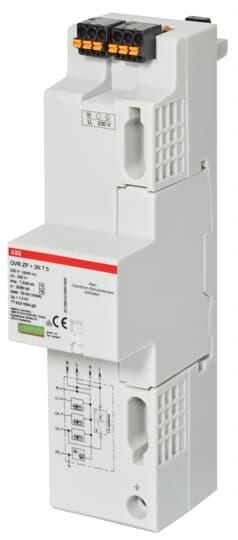

Combined arrester with function indicator, for tool-free installation on the 40mm busbar system with prepared voltage tap. The voltage tap (L and N) for RfZ and APZ according to the application rule VDE-AR-N 4100 can be retrofitted at any time using a set (optional). Application: Buildings without external lightning protection and to meet the requirements for overvoltage protection of the electrical system according to DIN0100-443.
| Property | Value |
| Maximum continuous voltage AC: | 255 V |
| Lightning impulse current (10/350 µs): | 7.5 kA |
| Protection level: | 1.5 kV |
| Test class: | Type 1 and 2 |
| Number of poles: | 3 |
| Nominal voltage AC: | 230 V |
| Blow-out: | no |
| Size: | 2 TE |
| Remote signaling: | no |
| Signaling on the device: | optical |
| TN-CS network type: | yes |
| DC network type: | no |
| TN network type: | no |
| Energetically coordinated protection effect for the end device: | no |
| Mounting type: | Busbar |
| TT network type: | no |
| Integrated back-up fuse: | no |
| Follow current extinguishing capacity: | 25 kA |
| Max. Conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Max. conductor cross-section flexible (fine-stranded): | 50 mm² |
| Network type other: | no |
| Network type TN-C: | yes |
| Network type IT: | no |
| Network type TN-S: | no |
| Protection level L-PE: | 1.5 kV |
| Protection class (IP): | IP30 |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
50 mm²
Lightning surge current (10/350 µs)
7.5 kA
Protection level
1.5 kV
Network form TT
No
Network type TN-S
No
Network form TN
No
Network type TN-C
Yes
Network type TN-C-S
Yes
Network type DC
No
Integrated backup fuse
No
Network type IT
No
HAB
OVR ZP+3L 7,5-255 3p TNC 7,5/22.5kA
Manufacturer
HAN
2CTB815799R1700
GTIN
3660308527981
Size
2 HP
Highest continuous voltage AC
255V
Mounting type
Busbar
Nominal voltage AC
230V
Number of poles
3
IP protection)
IP30
Signaling on the device
Optical
