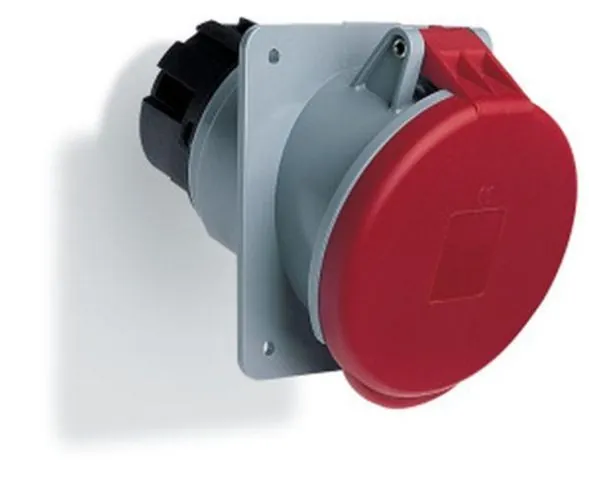

Industrial connectors are the solution for industrial sectors with high demands on safety, durability, reliability and cost savings for the end user. The range consists of IP44 and IP67 devices from 16 A to 125 A, from simple plugs to flexible customer-specific combination solutions. The products follow an ergonomic and robust design, are quick to assemble and have a long service life. The range covers all current clock positions. The connectors are approved according to IEC 60 309-1, 2- and -4. Country-specific approvals are also available on request.
| Property | Value |
| IEC current: | 63 A |
| UL/CSA current (if UL version required): | 63 A |
| Number of poles: | 4 |
| Connection technology: | screw terminal |
| Plug direction: | angled |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | red |
| Protection class (IP): | IP67 |
| Material: | Plastic |
| Military version: | no |
| Hole spacing horizontal: | 85 mm |
| Hole spacing vertical: | 85 mm |
| Flange dimension horizontal: | 110 mm |
| Flange dimension vertical: | 110 mm |
| RAL number: | 7001 |
| Rated voltage: | 380 to 415 V |
| Rated frequency: | 50 to 60 Hz |
Features
Rated frequency
50 to 60 Hz
HAB
363RAU6
Manufacturer
HAN
2CMA167418R1000
GTIN
7392696674188
Connection technology
Screw terminal
Rated voltage
380 to 415 V
IEC current
63 A
Identification color
Red
Military version
No
Number of poles
4
RAL number
7001
IP protection)
IP67
Voltage according to EN 60309-2
400 V (50+60 Hz) red
Plug direction
Angled
UL/CSA current rating (if UL version required)
63 A
Time position
6 hours
Material
Plastic
