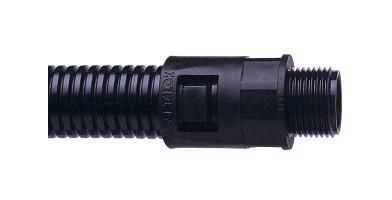

Adaptalok Type A - straight screw connection, one-piece with fixed external thread as PG48, nominal size: 54, in grey, liquid-tight (IP66)
| Property | Value |
| Nominal diameter: | 54 |
| Nominal size in inches: | 1 1/2 inch |
| Protection class (IP) : | IP66 |
| Design: | straight |
| Rotatable thread: | no |
| Design: | external thread |
| Connection type: | snap connection |
| Thread type: | other |
| Thread connection size: | PG48 |
| Thread length: | 12.1 |
| Total length: | 67.2 |
| Total height: | 64.9 |
| Material: | Polyamide (PA) |
| Color: | gray |
| Approved in combination with protective hose UR: | no |
| Approved in combination with protective hose DIN EN 61386-23: | no |
Features
Total height
64.9
Approved in combination with protective hose DIN EN 61386-23
No
Approved in combination with protective hose UR
No
HAB
AL54/PG48/A/GR
Minimal order
2 pieces
Manufacturer
HAN
7TCA296000R1283
GTIN
5020963006920
Version
Straight
Design
External thread
Rotating thread
No
Color
Overall length
67.2
Thread connection size
PG48
Thread type
Other
Thread length
12.1
Nominal diameter
54
Nominal size in inches
1 1/2 inch
Connection type
Snap connection
Material
Polyamide (PA)
