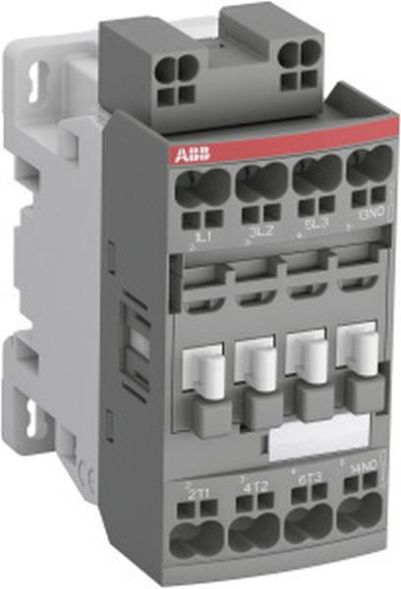

ABB Stotz-Kontakt AF16Z-30-01K-22 48-130V 50/60Hz 3p 7.5kW contactor, 1SBL176005R2201

Description

Features

Reviews

The 3-pole AF16Z contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very wide control voltage. This means that even large control voltage fluctuations can be handled. AFZ contactors can withstand short voltage dips and voltage drops (according to SEMI F47-0706). All integrated or subsequently attachable auxiliary break contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in overvoltage protection and do not require any additional suppression elements. Other accessories such as timing elements, wiring aids and locking elements, etc., complete the range.

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally closed contacts:	1
Rated operating power at AC-3, 400 V:	7.5 kW
Rated operating current Ie at AC-1, 400 V:	30 A
Rated operating current Ie at AC-3, 400 V:	18 A
Type of voltage for actuation:	AC/DC
Rated control supply voltage Us at AC 50 Hz:	48 to 130 V
Rated control supply voltage Us at AC 60 Hz:	48 to 130 V
Rated control supply voltage Us at DC:	48 to 130 V
Type of connection main circuit:	Spring-loaded connection
Suitable for series installation:	no
