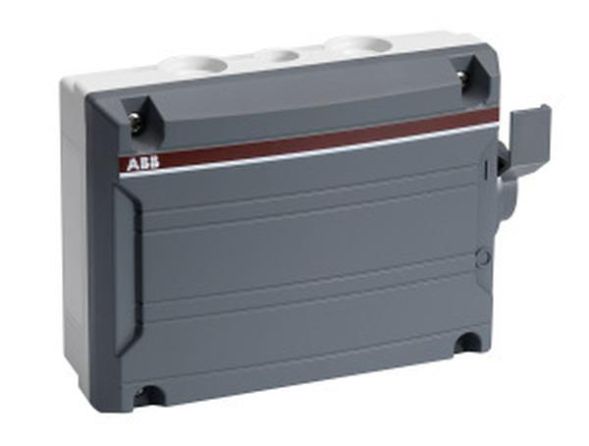

BW625TPN load break switch in housing 6-pole 25A 400V with dark grey handle plastic housing IP65 entry top and bottom
| Property | Value |
| Number of poles: | 6 |
| Operating power: | 7.5 kW |
| Number of auxiliary contacts as normally open: | 2 |
| Rated continuous current Iu: | 25 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | screw connection |
| Device design: | Complete device in housing |
| Design of the actuating element: | toggle lever |
| Suitable for floor mounting: | no |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | yes |
| Version as Maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Color of Actuating element: | gray |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Switching capacity at 400 V: | 7.5 kW |
| Rated continuous current at AC-21, 400 V: | 25 A |
| Number of switches: | 1 |
| Protection class (NEMA): | 4 |
Features
HAB
BW 625 TPN
Manufacturer
HAN
2CMA142406R1000
GTIN
7392696424066
Connection type main circuit
Screw connection
Number of auxiliary contacts as normally open
2
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
No
Version as reversing switch
No
Design of the actuating element
Rocker arm
Rated operational power at AC-3, 400 V
7.5kW
Rated operating voltage
690V
Rated continuous current Iu
25A
Rated continuous current at AC-21, 400 V
25A
Color of the actuator
Gray
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Complete device in housing
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
No
Number of poles
6
Switching capacity at 400 V
7.5kW
Protection class (IP), front
IP65
Protection class (NEMA)
4
Voltage release optional
No
Lockable
No
