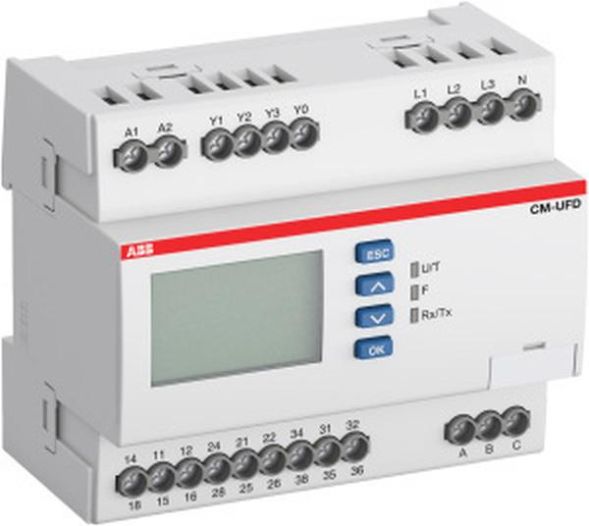

The CM-UFD.M22M is a multifunctional grid feed-in monitoring relay with an integrated Modbus RTU interface. It monitors the mains values required by CEI 0-21, such as over- or undervoltage (10-minute average, voltage reduction and increase protection) as well as all changes in the grid frequency (frequency increase and decrease protection). In addition, a ROCOF function (frequency gradient monitoring) can be activated.
| Property | Value |
| Voltage type for actuation: | AC/DC |
| Response value voltage: | 0 to 540 V |
| Number of contacts as changeover contact: | 3 |
| Design of the electrical connection: | Screw connection |
| Width: | 108 mm |
| Height: | 90 mm |
| Depth: | 67 mm |
| Voltage measuring range 1: | 0 to 540 V |
| Rated control supply voltage Us at AC 50 Hz: | 24 to 240 V |
| With removable terminals: | no |
| 1-phase undervoltage possible: | yes |
| 3-phase undervoltage possible: | yes |
| 1-phase overvoltage possible: | yes |
| 3-phase overvoltage possible: | yes |
| 1-phase window possible: | yes |
| 3-phase window possible: | yes |
| Includes DC undervoltage function: | no |
| Includes DC overvoltage function: | no |
| Contains DC voltage window function: | no |
| Type of voltage of the measuring range: | AC |
| Rated control supply voltage Us at AC 60 Hz: | 24 to 240 V |
| Rated control supply voltage Us at DC: | 24 to 240 V |
Features
HAB
CM-UFD.M22M
Manufacturer
HAN
1SVR560731R3700
GTIN
4013614521119
Number of contacts as changeover
3
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
24 to 240 V
Rated control supply voltage Us at AC 60 Hz
24 to 240 V
Rated control supply voltage Us at DC
24 to 240 V
Width
108 mm
Height
90 mm
With removable clamps
No
Voltage type for actuation
AC/DC
Depth
67 mm
