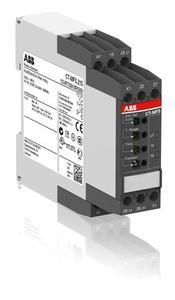

ABB Stotz-Kontakt CT-MFS.21S, time relay, multifunction 2We, 24-240VAC/DC successor to 1SVR630010R0200, 1SVR730010R0200

Description

Features

Reviews

The CT-S series is ABB's most economical and universal time relay series. The program includes 16 multi-function and 26 single-function devices with up to 11 functions, which allow for maximum flexibility in use. The devices have 7 or 10 time ranges that can be set from 0.05 seconds to 300 hours. In addition, an extended temperature range of -40 °C to +60 °C is possible for selected devices.

Property	Value
Number of outputs, undelayed, changeover contact:	2
Number of outputs, delayed, changeover contact:	2
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	yes
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 1080000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	22.5 mm
Depth:	103.7 mm
Height:	85.6 mm
With plug-in base:	no
Remote control possible:	yes
Suitable as remote control:	no
Function on-delayed:	yes
off-delayed function:	yes
on-delayed function:	yes
off-delayed function:	yes
star/delta function:	yes
pulse-forming function:	yes
flashing function starting with pause, fixed time:	no
flashing function starting with pulse, fixed time:	yes
clocking function starting with pause, variable:	no
clocking function starting with pulse, variable:	no
With semiconductor output:	no
Nominal current:	4 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
