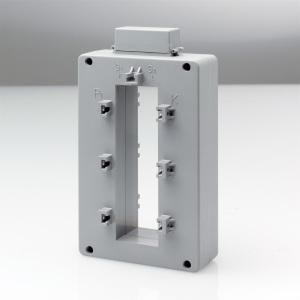

CT-through current transformers for distribution board construction. Their compact size and easy mounting on busbars, mounting rails or mounting plates enable simple installation with high measurement accuracy.
| Property | Value |
| Overcurrent limiting factor: | FS 5 |
| Secondary connection: | Plug connection |
| With touch protection: | yes |
| Design: | Through-hole current transformer |
| Primary rated current In: | 100 A |
| Secondary rated current: | 5 A |
| Secondary rated apparent power: | 3 VA |
| Accuracy class: | 1 |
| Snap-on fastening: | yes |
| Number of primary entrances: | 1 |
| With copper bar: | yes |
| Certified: | yes |
| Opening diameter: | 18 mm |
| Height of opening: | 125 mm |
| Width of opening: | 30 mm |
Features
Height of the Opening
125 mm
Width of opening
30 mm
Accuracy class
1
Certified
Yes
HAB
CT12-V/3000
Manufacturer
HAN
2CSG831250R1101
GTIN
8012542610304
Version
Through-hole current transformer
