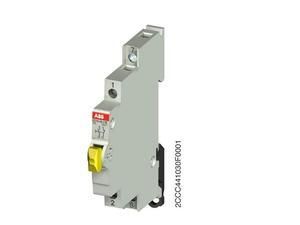

Buttons are always equipped with a normally open and normally closed contact. The different colors of the buttons (6 colors) are based on DIN60204-1 (color coding of control elements and their meaning). The buttons are suitable for passing on pulse control commands in almost any electrical system. They can also be used to operate light groups using a pulse command, e.g. to a step switch, directly on site from the sub-distribution board or distribution cabinet. The module width is always 9 mm (0.5 TE).
| Property | Value |
| Width in pitch units: | 0.5 |
| With signal lamp: | no |
| Voltage type: | AC |
| Color of the cap: | yellow |
| Light source: | not applicable |
| Lamp base: | not applicable |
| Max. Lamp power: | 0.72 W |
| Protection class (IP): | IP20 |
| Button color: | yellow |
| Installation depth: | 75 mm |
| Lamp voltage: | 48 V |
| Switching voltage: | 250 V |
| Switching current: | 16 A |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
Features
Color of the cap
Yellow
Max. lamp power
0.72 W
HAB
E215-16-11E
Manufacturer
HAN
2CCA703153R0001
GTIN
7612270938841
Number of contacts as normally open
1
Number of contacts as opener
1
Width in pitch units
0.5
Installation depth
75 mm
Button color
Yellow
Lamp voltage
48V
Lamps
Not applicable
With signal lamp
No
IP protection)
IP20
Voltage type
AC
