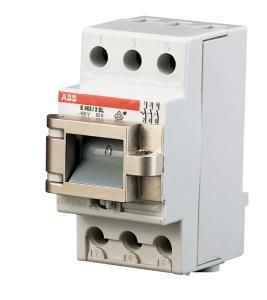

As a main switch between the last overcurrent protection device before the measuring device and the circuit distributor. The main switch can be locked. The main switches can also be used for various other applications. With double-breaking switching contacts and short-circuit strength up to 10 kA with pre-fuse In < 63 A, gG
| Property | Value |
| Number of poles: | 3 |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Width in modular spacing: | 2.5 |
| Switching function: | Off switch |
| With signal lamp: | no |
| Type of voltage: | AC |
| Color of the cap: | gray |
| Protection class (IP): | IP20 |
| Min. Rated voltage: | 24 V |
| Short-circuit strength (Icw): | 10 kA |
| Forced disconnection (according to DIN VDE 0113): | yes |
| Installation depth: | 70 mm |
| Number of contacts as normally open: | 3 |
Features
HAN
2CCE160301R0131
Manufacturer
HAB
E463/3SL
GTIN
7612270932535
Color of the cap
Gray
Min. rated voltage
24 V
Rated voltage
400V
Rated current
63 A
Width in pitch units
2.5
Installation depth
70 mm
Short circuit strength (Icw)
10kA
Number of contacts as normally open
3
With signal lamp
No
Number of poles
3
Switching function
Off switch
IP protection)
IP20
Voltage type
AC
