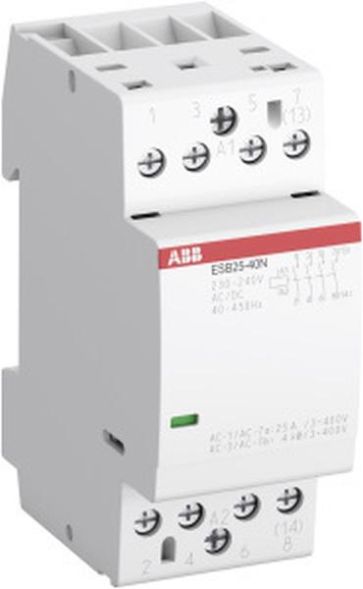

4-pole contactors ESB25..N with a width of 36 mm control 3-phase loads up to 25 A and are available with different contact assignments and coil voltages. They switch electric heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Thanks to an integrated coil circuit, they work with both AC and DC control voltages. The devices are therefore completely hum-free and quiet when switching. An auxiliary switch that can be attached to the left as an accessory, as well as sealing caps and a spacer complete the range. ESB25..N have an installation design and meet the household standard EN61095, among other things, making them particularly suitable for installation in distribution boards.
| Property | Value |
| Type of operating voltage: | AC/DC |
| Protection class (IP): | IP20 |
| Number of modular units: | 2 |
| Rated operating current: | 25 A |
| Rated operating voltage: | 220 to 400 V |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Type of actuating voltage: | AC/DC |
| Installation depth: | 58 mm |
| Rated operating voltage: | 48 V |
| Usage category: | 7 |
| Number of contacts as normally closed: | 4 |
Features
Rated operating current
25 A
HAB
0S/4Ö 48V AC/DC 4-pin
Manufacturer
HAN
1SAE231111R0304
GTIN
4013614517754
Number of contacts as opener
4
Rated operating voltage
220 to 400 V
Installation depth
58 mm
IP protection)
IP20
Additional equipment possible
Yes
