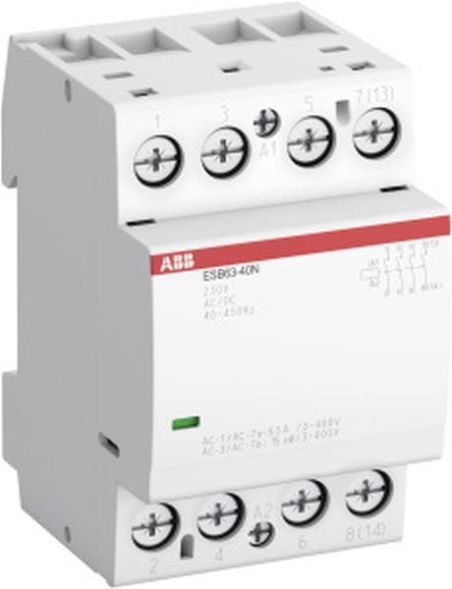

4-pole contactors ESB63..N with a width of 54 mm control 3-phase loads up to 63 A (NC contacts up to 30 A) and are available with different contact assignments and coil voltages. They switch electric heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Thanks to an integrated coil circuit, they work with both AC and DC control voltages. The devices are therefore completely hum-free and quiet when switching. An auxiliary switch that can be attached to the left as an accessory, as well as sealing caps and a spacer complete the range. ESB63..N have an installation design and meet the household standard EN61095, among other things, making them particularly suitable for installation in distribution boards.
| Property | Value |
| Type of operating voltage: | AC/DC |
| Protection class (IP): | IP20 |
| Number of modular units: | 3 |
| Rated operating current: | 63 A |
| Rated operating voltage: | 220 to 400 V |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Type of actuating voltage: | AC/DC |
| Installation depth: | 58 mm |
| Rated operating voltage: | 12 V |
| Usage category: | 7 |
| Number of contacts as normally open: | 4 |
Features
Rated operating current
63 A
HAB
4S/0Ö 12V AC/DC 4-pin
Manufacturer
HAN
1SAE351111R1440
GTIN
4013614519352
Number of contacts as normally open
4
Rated operating voltage
220 to 400 V
Installation depth
58 mm
IP protection)
IP20
Additional equipment possible
Yes
