Residual current circuit breakers (RCBOs) offer protection for people and property, as well as protection against electrically ignited fires in accordance with DIN0100-410 and DIN0100-530. They ensure protection of circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with smooth DC residual current of up to 6 mA to earth. As well as fault protection (protection against indirect contact), additional protection (with I n 30 mA) and fire protection (with I n 300 mA). They meet the product standard IEC/EN 61009-1 (VDE 0664-20). Contact is made directly via the Smissline TP plug-in base system.
| Property | Value |
| Tripping characteristic: | C |
| Rated current: | 16 A |
| Rated residual current: | 0.03 A |
| Rated voltage: | 400 V |
| Frequency: | 50/60 Hz |
| Number of poles (total): | 4 |
| Width in modular spacing: | 3 |
| Residual current type: | A |
| Installation depth: | 91 mm |
| Rated breaking capacity according to IEC 60947-2: | 10 kA |
| Surge current strength: | 0.25 kA |
| Protection class (IP): | IP20 |
| Energy limitation class: | 3 |
| Overvoltage category: | 3 |
| Pollution degree: | 2 |
| Switching neutral conductor: | no |
| Number of protected poles: | 3 |
| Suitable for flush-mounted installation: | no |
| Voltage type: | AC |
| False tripping protection: | no |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Shutdown characteristics: | instantaneous |
| With locking device: | yes |
| Ambient temperature during operation: | -25 to 40 °C |
| Connectable conductor cross-section, single-wire: | 0.75 to 35 mm² |
| Connectable conductor cross-section, stranded: | 0.75 to 35 mm² |
Features
Shutdown characteristics
Without delay
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
HAB

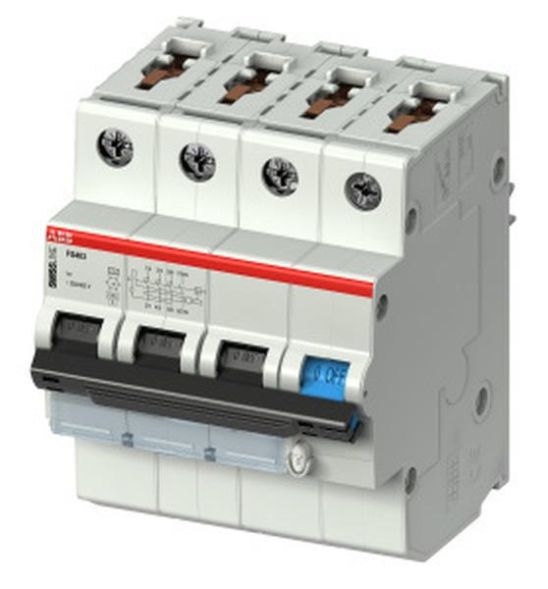

FS403E-C16/0.03 (6kA) 3-pole+N 6kA
Manufacturer
HAN
2CCL564111E0164
GTIN
7612271434601
Connectable conductor cross-section solid
0.75 to 35 mm²
Connectable conductor cross-section stranded
0.75 to 35 mm²
Number of protected poles
3
Trigger characteristics
C
Rated breaking capacity according to EN 61009
6kA
Rated breaking capacity according to IEC 60947-2
10kA
Rated residual current
0.03A
Rated insulation voltage Ui
500V
Rated voltage
400V
Rated impulse withstand voltage Uimp
4kV
Rated current
16A
Width in pitch units
3
Installation depth
91 mm
Energy limitation class
3
False trigger protection
No
Residual current type
A
Frequency
50/60Hz
Suitable for flush-mounted installation
No
With locking device
Yes
Switching neutral conductor
No
Number of poles (total)
4
IP protection)
IP20
Voltage type
AC
Surge current strength
0.25kA
Ambient temperature during operation
-25 to 40 °C
Degree of contamination
2
Overvoltage category
3
