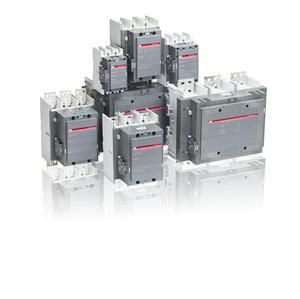

The GAF750 contactors are designed for switching direct current and are constructed as block contactors. They feature AF technology and have all of its advantages. With just four coil variants, the entire voltage range from 20 V DC and 24 V AC to 500 V AC / DC is covered. The built-in coil circuit makes separate overvoltage protection superfluous. The arc chambers are equipped with permanent magnets for spark quenching. The polarity must be observed here. The contact sets of the GAF contactors cannot be exchanged. The GAF series is designed for applications with the utilization category DC-1 and UL DC general use at 1000 V. The GAF series shares all accessories with the accessories of the AF series
| Property | Value |
| Connection type main circuit: | Connection rail |
| Number of auxiliary contacts as normally closed contacts: | 1 |
| Number of normally open contacts as main contacts: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 100 to 250 V |
| Rated control supply voltage Us at AC 60 Hz: | 100 to 250 V |
| Rated control supply voltage Us at DC: | 100 to 250 V |
| Suitable for series installation: | no |
| Voltage type for actuation: | AC/DC |
Features
HAB
GAF750-10-11 100-250V 50/60Hz / 100-250V DC
Manufacturer
HAN
1SFL637025R7011
GTIN
7320500408803
Connection type main circuit
Connecting rail
Number of auxiliary contacts as normally open
1
Number of auxiliary contacts as normally closed
1
Number of normally open contacts as main contacts
1
Rated control supply voltage Us at AC 50 Hz
100 to 250 V
Rated control supply voltage Us at AC 60 Hz
100 to 250 V
Rated control supply voltage Us at DC
100 to 250 V
Suitable for series installation
No
Voltage type for actuation
AC/DC
