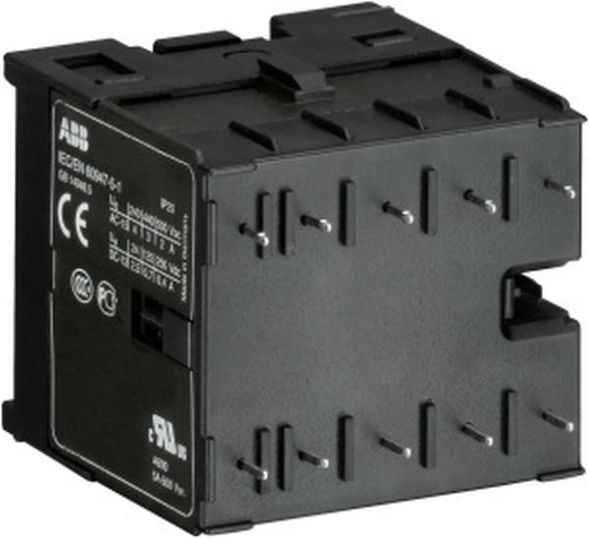

K/KC 6 miniature auxiliary contactors fulfill relay functions and represent a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. The 4-pole devices offer a wide range of application options, even in unfavorable space conditions. With their AC or DC control, they switch control circuits or load circuits up to 4 A (230 V). Attachable accessories are quenching elements and 2-pole auxiliary switches that can be plugged in on the side or front.
| Property | Value |
| Number of auxiliary contacts as normally open contacts: | 2 |
| Number of auxiliary contacts as normally closed contacts: | 2 |
| Rated operating current Ie, 400 V: | 3 A |
| Rated control supply voltage Us at AC 50 Hz: | 380 to 415 V |
| Rated control supply voltage Us at AC 60 Hz: | 380 to 415 V |
| Mounting type: | PCB |
| Interface: | no |
| Voltage type for actuation: | AC |
| With LED display: | no |
| Connection type auxiliary circuit: | Solder connection |
| Manual operation possible: | no |
Features
Manual operation possible
No
HAB
K6-22Z-P-85
Manufacturer
HAN
GJH1211009R8225
GTIN
4013614189159
Connection type auxiliary circuit
Solder connection
Number of auxiliary contacts as normally open
2
Number of auxiliary contacts as normally closed
2
Rated operational current Ie, 400 V
3 A
Rated control supply voltage Us at AC 50 Hz
380 to 415 V
Rated control supply voltage Us at AC 60 Hz
380 to 415 V
With LED display
No
Mounting type
Circuit board
Interface
No
Voltage type for actuation
AC
