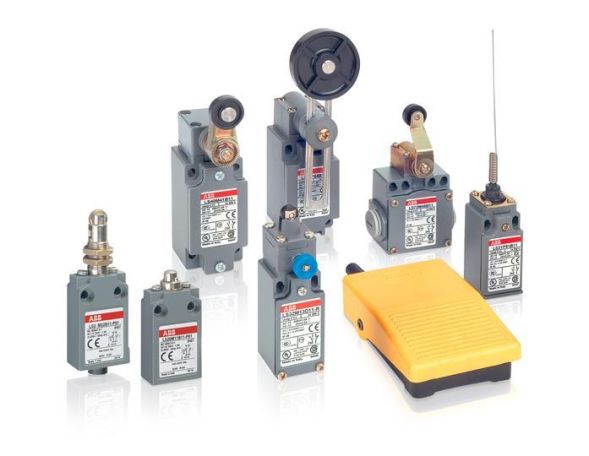

LS33M12B11 is a 30 mm wide position switch made of a zinc alloy (Zamak), with 2 mounting holes at the top, 1 cable entry according to ISO M20x1, 5 at the bottom, a flattened steel roller pressure bolt (galvanized) and 1 NO + 1 NC as snap contact
| Property | Value |
| Number of contacts as normally closed: | 1 |
| Number of contacts as normally open: | 1 |
| Length of sensor: | 33 mm |
| Width of sensor: | 30 mm |
| Height of sensor: | 85 mm |
| Switching function: | Snap-action switching element |
| Protection class (IP): | IP66 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | domed plunger |
| Design of the electrical connection: | Cable entry (metric) |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 70 °C |
| Forced opening: | no |
| Explosion protection category for gas: | without |
| Housing coating: | powder-coated |
| Housing material: | metal |
| Rated operating current Ie at DC-13, 230 V: | 0.4 A |
| Rated operating current Ie at DC-13, 125 V: | 0.6 A |
| Rated operating current Ie at DC-13, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 24 V: | 10 A |
| Rated operating current Ie at AC-15, 125 V: | 5.5 A |
| Rated operating current Ie at AC-15, 230 V: | 3.1 A |
| Alignment of the actuating element: | other |
| Switching function latching: | no |
| Protection class (NEMA): | 4X |
Features
Rated operating current Ie at DC-13, 230 V
0.4 A
Rated operating current Ie at DC-13, 125 V
0.6 A
Rated operating current Ie at AC-15, 24 V
10 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
5.5 A
HAB
LS33M12B11
Manufacturer
HAN
1SBV013812R1211
GTIN
3471522622501
Number of contacts as normally open
1
Number of contacts as opener
1
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Tappet
Design of the electrical connection
Cable entry (metric)
Alignment of the actuator
Other
Rated operating current Ie at AC-15, 230 V
3.1 A
Rated operating current Ie at DC-13, 24 V
6A
Housing coating
Powder coated
Width of the sensor
30 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
85 mm
Length of the sensor
33 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP66
Protection class (NEMA)
4X
Ambient temperature during operation
-25 to 70 °C
Housing material
Metal
Forced opening
No
