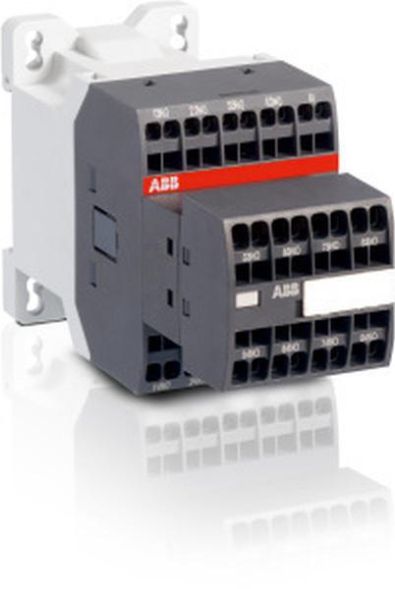

NS/NSL contactors perform relay functions and represent the very compact series with AC or DC control. The 4- or 8-pole devices switch control circuits or load circuits up to 4 A (230 V). Attachable accessories include side-insertable quenching elements, 1-pole auxiliary switches that can be attached to the front, and timers for on- and off-delays.
| Property | Value |
| Number of auxiliary contacts as normally open: | 5 |
| Number of auxiliary contacts as normally closed: | 3 |
| Rated operating current Ie, 400 V: | 3 A |
| Rated control supply voltage Us at AC 50 Hz: | 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 230 V |
| Mounting type: | DIN rail/screw |
| Interface: | no |
| Voltage type for actuation: | AC |
| With LED display: | no |
| Connection type auxiliary circuit: | spring-loaded connection |
| Manual operation possible: | no |
Features
Manual operation possible
No
HAB
NS53ES-26 230/50/60
Manufacturer
HAN
1SBH101004R2653
GTIN
3471523014268
Connection type auxiliary circuit
Spring-loaded connection
Number of auxiliary contacts as normally open
5
Number of auxiliary contacts as normally closed
3
Rated operational current Ie, 400 V
3 A
Rated control supply voltage Us at AC 50 Hz
230V
Rated control supply voltage Us at AC 60 Hz
230V
With LED display
No
Mounting type
DIN rail/screw
Interface
No
Voltage type for actuation
AC
