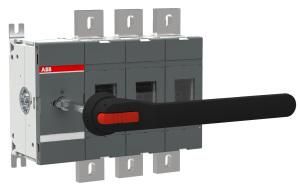

The manually operated switch disconnectors of the OT series are unique in their variety and flexibility. The OT series switches currents from 16 A to 4000 A and at voltages of up to 690 V AC. Despite their high performance, the switches are very easy to operate and take up little space. The freely selectable installation position enables a high level of flexibility and efficiency in planning. The OT switch disconnectors can be used as main switches in the main or sub-distribution board. ABB also offers a wide range of accessories for this series, such as extension shafts, handles and terminal covers. This means that OT switch disconnectors can also be used in the most demanding applications.
| Property | Value |
| Number of poles: | 3 |
| Rated operational power at AC-23, 400 V: | 560 kW |
| Rated continuous current Iu: | 1000 A |
| Max. Rated operating voltage Ue at AC: | 1000 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | other |
| Connection type main circuit: | bolt connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | long rotary handle |
| Suitable for floor mounting: | no |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 50 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 1000 V |
| Switching capacity at 400 V: | 560 kW |
| Rated continuous current at AC-23, 400 V: | 1000 A |
| Protection class (NEMA): | 1 |
Features
HAN
1SCA118451R1001
Manufacturer
HAB
OT1000EP03P
GTIN
6417019501833
Rated operational power at AC-23, 400 V
560kW
Rated operating voltage
1000V
Rated continuous current Iu
1000A
Rated continuous current at AC-23, 400 V
1000A
Rated short-time withstand current Icw
50kA
Color of the actuator
Black
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Connection type main circuit
Bolt connection
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
1000V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Switching capacity at 400 V
560kW
Protection class (IP), front
Other
Protection class (NEMA)
1
Voltage release optional
No
Lockable
Yes
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Long rotary handle
