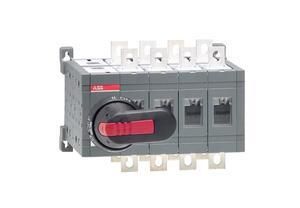

ABB's series of manually operated load changeover switches is an optimal solution for numerous applications. The load changeover switches switch currents from 16 A to 3200 A and at voltages up to 690 V AC. Despite their high performance, the switches ensure safe operation thanks to a variety of integrated safety functions. The compact design of the series enables optimal use of space. ABB load changeover switches are available in two different versions. These differ in the type of switching: open switching (I-0-II) and closed switching (I-I+II-II). The changeover switches also have IEC and UL approvals. ABB offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch so that it functions as an ATS (Automatic Transfer Switch). This means that the load changeover switches can be used in the most demanding applications.
| Property | Value |
| Number of poles: | 4 |
| Rated operating power at AC-23, 400 V: | 110 kW |
| Max. Rated operating voltage Ue at AC: | 1000 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Bolt connection |
| Device design: | Built-in device plug-in technology |
| Design of the actuating element: | long rotary handle |
| Suitable for floor mounting: | no |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | yes |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 8 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 1000 V |
| Switching capacity at 400 V: | 110 kW |
| Rated continuous current at AC-21, 400 V: | 200 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 200 A |
| Protection class (NEMA): | 1 |
