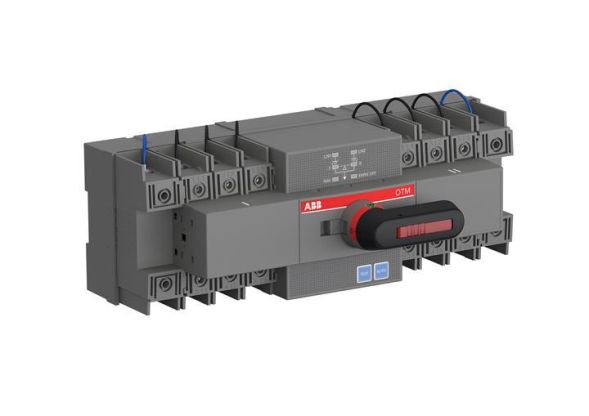

OTM40F4C20D400C Automatic changeover switch 4-pole 40A 20D Control unit Voltage range 154-480 VAC Access top open changeover I-0-II
| Property | Value |
| Number of poles: | 4 |
| Max. Rated operating voltage Ue at AC: | 415 V |
| Version as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP20 |
| Connection type main circuit: | Bolt connection |
| Device design: | Built-in device plug-in technology |
| Design of the actuating element: | long rotary handle |
| Suitable for floor mounting: | no |
| Motor drive integrated: | yes |
| Suitable for front mounting 4-hole: | yes |
| Version as Maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | no |
| Version as reversing switch: | no |
| Rated short-time current strength Icw: | 2.5 kA |
| Number of switches: | 1 |
| Protection class (NEMA): | 1 |
Features
HAB
OTM40F4C20D400C 4-pole 40A 20D
Manufacturer
HAN
1SCA151252R1001
GTIN
6417019815657
Connection type main circuit
Bolt connection
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Long rotary handle
Rated short-time withstand current Icw
2.5kA
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device plug-in technology
Max. rated operating voltage Ue at AC
415V
Motor drive integrated
Yes
Motor drive optional
No
Number of poles
4
Protection class (IP), front
IP20
Protection class (NEMA)
1
Voltage release optional
No
Lockable
No
