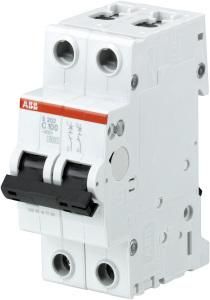

The S 200 80A-100A series circuit breakers protect cables and lines against overload and short circuit in accordance with DIN0100-430 and DIN0100-530. They comply with the construction regulations DIN0641-11 or IEC/EN 60898-1 and DIN0660-101 or IEC/EN60947-2. Their patented connection terminal ensures simple and safe contacting and handling using a pressure plate. For better visibility when wiring, the connection opening for cables is located above the connection opening for the phase busbar. Conductor cross-sections of up to 50 mm2 can be connected directly to the device via the connection terminal with insulation in protection class IP20. The extensive range of accessories offers you everything you need for your installation tasks. Each device is subjected to intensive quality and performance tests three times before delivery.
| Property | Value |
| Tripping characteristic: | C |
| Rated current: | 80 A |
| Rated voltage: | 110 V |
| Type of voltage: | AC/DC |
| Frequency: | 50 to 60 Hz |
| Width in pitch units: | 2 |
| Number of poles (total): | 2 |
| Energy limitation class: | 3 |
| Additional equipment possible: | yes |
| Overvoltage category: | 3 |
| Installation depth: | 69 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 20 kA |
| Rated switching capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Pollution degree: | 3 |
| Switching neutral conductor: | no |
| Number of protected poles: | 2 |
| Suitable for flush-mounted installation: | no |
| Rated insulation voltage Ui: | 440 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Ambient temperature during operation: | -25 to 55 °C |
| Connectable conductor cross-section, stranded: | 0 to 50 mm² |
| Connectable conductor cross-section single-wire: | 0 to 50 mm² |
