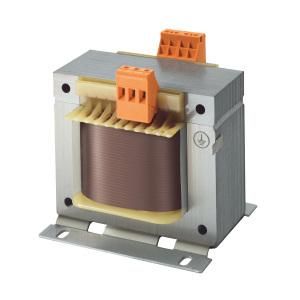

Single-phase control transformer for the continuous supply of control circuits, such as commands, signaling, interlocks, etc. Primary supply with 230V/400V AC with a rated power of 50 VA to 2500 VA depending on the type. Double secondary output with 12-24 V or 115-230 V and full power tap on all outputs. Tested according to reference standard CEI EN 61558-2-2.
| Property | Value |
| Rated apparent power: | 250 VA |
| Height: | 110 mm |
| Width: | 100 mm |
| Depth: | 110 mm |
| Primary voltage 1: | 230 to 400 V |
| Secondary voltage 1: | 12 to 24 V |
| Protection class (IP): | IP00 |
| Suitable for series installation: | no |
| Short-circuit proof: | no |
| Designed as an isolating transformer: | no |
| Toroidal core: | no |
| Insulating material class according to IEC 85: | F |
| Suitable for circuit board mounting: | no |
| Designed as a safety transformer: | no |
| Designed as an economy transformer: | no |
| Conductor material: | copper |
Features
Short circuit proof
No
Conductor material
Copper
Secondary voltage 1
12 to 24 V
HAB
TM-C 250/12-24
Manufacturer
HAN
2CSM207093R0801
GTIN
8012542070931
Width
100 mm
Suitable for series installation
No
Height
110 mm
IP protection)
IP00
Depth
110 mm
