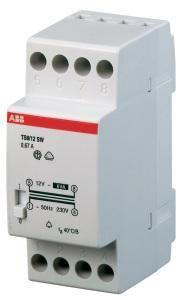

Conditionally short-circuit proof TS bell transformers for supplying extra-low voltage (SELV). Suitable for loads that require a short-term supply, especially doorbells and chimes. In addition to perfect insulation and separation between the primary and secondary circuits, the TS transformers have a thermal protection device integrated in the secondary part, which makes them resistant to short-circuit currents (conditionally short-circuit proof). In addition, the TS8/SW series is equipped with a switch for controlling loads on the secondary output.
| Property | Value |
| Type of transformer: | Standard bell transformer |
| Primary voltage: | 230 V |
| Width in modular spacing: | 2 |
| Secondary voltage 1: | 12 V |
| Secondary current 1: | 0.66 A |
| Suitable for flush mounting: | no |
| Short-circuit proof: | yes |
| Suitable for surface mounting: | no |
| Length: | 65 mm |
| Width: | 35 mm |
| Height: | 85 mm |
| Max. output power: | 8 W |
| Suitable for series installation: | yes |
| Temperature protection: | yes |
| Max. output current: | 0.66 A |
| Max. power loss: | 4 W |
| With on/off switch: | yes |
Features
Secondary voltage 1
12 V
HAB
TS8/12SW
Manufacturer
HAN
2CSM081402R0811
GTIN
8012542368403
Width
35 mm
Width in pitch units
2
Suitable for series installation
Yes
Height
85 mm
Length
65 mm
With on/off switch
Yes
