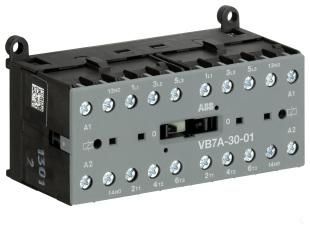

Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) represent a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This means that the devices offer a very wide range of application options even in unfavourable space conditions. The mechanically interlocked reversing contactors switch power circuits of motors with clockwise and anti-clockwise rotation with their AC or DC control. Attachable accessories include quenching elements as well as 2-pole auxiliary switches that can be plugged onto the front and reversing wiring.
| Property | Value |
| Connection type main circuit: | Screw connection |
| Voltage type for actuation: | AC |
| Function: | Reversing contactor |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Rated control supply voltage Us at AC 50 Hz: | 220 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 220 V |
| Degree of protection (IP): | IP20 |
| Rated operating current Ie at AC-3, 400 V: | 12 A |
| Rated operating power NEMA: | 2.2371 kW |
| Protection class (NEMA): | 1 |
Features
HAB
VB7A-30-01-80
Manufacturer
HAN
GJL1311911R8010
GTIN
4013614155468
Connection type main circuit
Screw connection
Rated operating power NEMA
2,2371 kW
Rated operational power at AC-3, 400 V
5.5kW
Rated operational current Ie at AC-3, 400 V
12A
Rated control supply voltage Us at AC 50 Hz
220 to 240 V
Rated control supply voltage Us at AC 60 Hz
220V
Function
Reversing contactor
IP protection)
IP20
Protection class (NEMA)
1
Voltage type for actuation
AC
