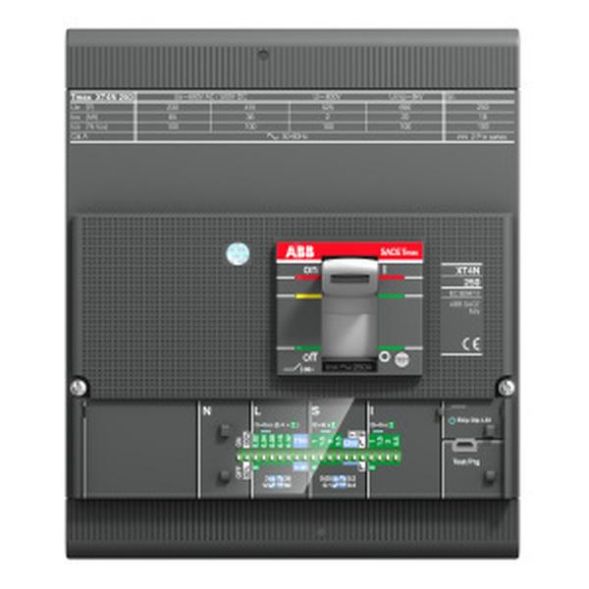

Molded case circuit breakers for system protection in accordance with EN 60947-2 (DIN0660, Part 101), molded case load disconnectors in accordance with EN 60947-3 (DIN0660, Part 107). The Tmax XT molded case/load disconnectors meet the different system requirements of direct and alternating current networks. Tmax XT with thermomagnetic or electronic releases can be used to protect power distribution systems, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection conversion kits, mechanical and electrical accessories as well as version conversion kits (plug-in / withdrawable) are available. Various fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series links smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM Cloud platform.
| Property | Value |
| Rated continuous current Iu: | 160 A |
| Connection type main circuit: | Bolt connection |
| Number of poles: | 4 |
| Device design: | Built-in device, fixed installation technology |
| Position of connection for main circuit: | front |
| Protection class (IP): | IP20 |
| Overload release current setting: | 400 to 100 A |
| Setting range of the short-time delayed short-circuit release: | 1000 to 100 A |
| Setting range of the instantaneous short-circuit release: | 100 to 1000 A |
| Rated voltage: | 690 to 220 V |
| Rated short-circuit breaking current Icu at 400 V, 50 Hz: | 120 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | toggle |
| With undervoltage release: | no |
| Integrated earth fault protection: | no |
| Integrated motor drive: | no |
| Motor drive optional: | yes |
| With trip detector: | no |
| Complete device with protection unit: | yes |
| DIN rail mounting optional: | yes |
