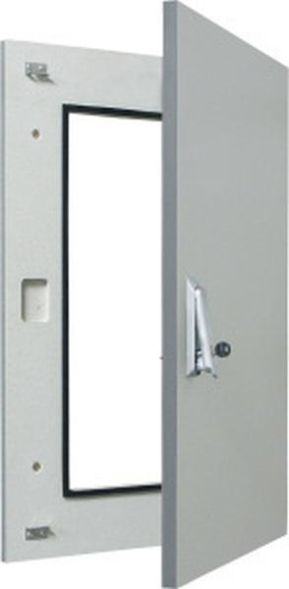

Fire protection front door, VF series, for indoor use, with frame and door, protection class IP54, building material according to A2 - non-flammable, tested according to DIN 4102-1, smoke-tight, fire resistance 30 min tested according to DIN 4102-2, fire load insulation 30 min based on DIN 4102-11, functional integrity 30 min based on DIN 4102-12, surface coated, in RAL SIMILAR7035, single-leaf door, door made of non-flammable material, with swivel lever with half cylinder, door opening angle 180 degrees, door hinge on the right, dimensions in mm (H x W x D): 895 x 795 x 51, frame dimensions in mm (H x W x D): 895 x 795 x 22, locking unit 4 RE, construction height 0, field width 2, Space units 96
| Property | Value |
| Version: | Protective door |
| Version as a viewing door: | no |
| Version as a door for isolating switch locking: | no |
| Surface version: | other |
| Color: | grey |
| Height: | 895 mm |
| Width: | 795 mm |
| Material: | other |
| EMC version: | no |
| Depth: | 51 mm |
| Protection class (IP): | IP54 |
Features
HAB
2/0VF10
Manufacturer
HAN
2CPX041049R9999
GTIN
4011617410492
Version
Protective door
Version as a viewing door
No
Designed as a door for circuit breaker interlock
No
Surface finish
Other
Width
795 mm
EMC version
No
Color
Height
895 mm
IP protection)
IP54
Depth
51 mm
Material
Other
