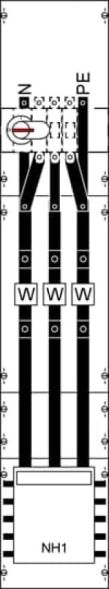

Measuring field, complete field, with meter cross, for indoor use, applicable standards: DIN EN 61439-1,0660-600-1, dimensions in mm (H x W x D): 900 x 750 x 160, number of meter spaces for individual tariff 1, number of SG spaces 2, number of transformer meter spaces 1, including test terminal as specified by NB, intermediate terminal area wired in the access as per TAB A.5, note: transformer systems must be installed in a separate housing, locking unit 6 RE, height 2, field width 3, space units 216, plastic covers, sealable quick-release fastener, RAL 7035
| Property | Value |
| Height: | 900 mm |
| Width: | 750 mm |
| Width in modular units: | 36 |
| Design: | 1-storey |
| Connection space: | 300 mm |
| Number of meter spaces: | 1 |
| Number of TSG spaces: | 2 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower Connection compartment: | with top hat rails |
| Color: | gray |
| RAL number: | 7035 |
| Protection class (IP): | IP2XC |
Features
HAB
KA4028Z H2/B3 1Z2SG1APZ
Manufacturer
HAN
2CPX033274R9999
GTIN
4011617332749
Connection room
300 mm
Number of meter slots
1
Version
1-storey
Width
750 mm
Width in pitch units
36
Color
Height
900 mm
With mounting plate
No
With wiring
Yes
RAL number
7035
IP protection)
IP2XC
Lower connection compartment
With DIN rails
