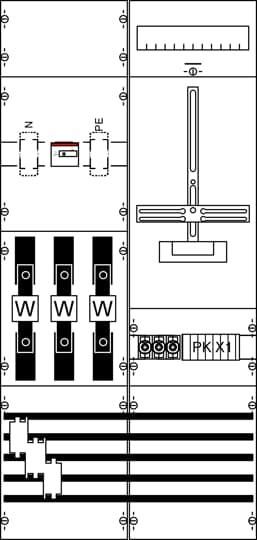

Measuring and transformer panel, complete panel, with meter cross, for indoor use, applicable standards: DIN EN 61439-1,0660-600-1, DIN EN 61439-2,0660-600-2, rated current In 125 A, dimensions in mm (H x W x D): 1050 x 500 x 160, network system TN-S, 5-pole, direct connection, number of meter slots single tariff 1, number of transformer meter slots 1, including test terminal as per NB specification, wired as per NB specifications, voltage path fuse base D01/3-pole, load range: busbar system Cu bars 12 x 5 mm 5-pole, separation point in front of the transformer fuse bases 1x3xNH00/125 A, transformer area transformer support with removable transformer tab 170 x 30 x 5 mm, Ritz: EKS 60-03, EKS 70-04, EKSO 74, MBS: EASK 31.3, EASK 31.4, EASK 31.5, EASK 41.4, EASK 41.5 (provided by NB), isolating point after the transformer load switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 connections N+PE 95qmm, locking unit 7 RE, height 3, field width 2, space units 168, plastic covers, sealable quick-release fastener, RAL 7035
| Property | Value |
| Number of meter spaces: | 1 |
| Number of fields: | 2 |
| Height: | 1050 mm |
| Width: | 500 mm |
| Depth: | 160 mm |
| Protection class (IP): | IP2XC |
| Design: | 1-storey |
| Lower connection compartment: | with 5-pole busbar |
| With mounting plate: | no |
