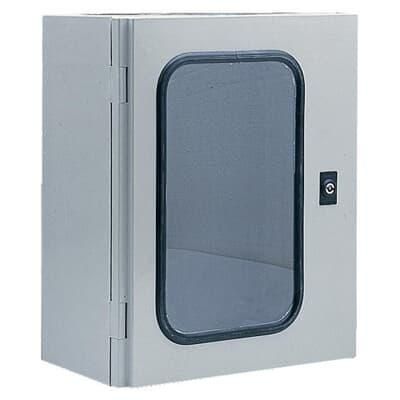

ABB Striebel & John 4TBA831130C0100 PA641 615x415x230 ARIA DPB 3mm 3-point cabinet

Description

Features

Reviews

The cabinets are made of light grey (RAL 7035), dyed through, hot-pressed, glass fibre reinforced polyester. Threaded bolts are available for fastening the mounting plate and the mounting frame. ARIA cabinets offer optimum safety for both users and devices thanks to the protective insulation and the high protection class of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA641 cabinet with window door 615x415x230 ARIA, double bit 3mm, 3-point locking IP54, IK07

Property	Value
Height:	615 mm
Width:	415 mm
Depth:	230 mm
Inner depth:	208 mm
Protection class (IP):	IP66
Impact resistance:	IK07
Housing material:	Plastic
RAL number:	7035
Mounting type:	Surface-mounted
Suitable for Outdoor use:	yes
Surface:	untreated
Suitable for lightning protection:	no
Mounting option:	no
With mounting plate:	no
Type of cover:	door
Type of door:	single
Cover design:	closed
Functional integrity:	without
Material thickness of housing:	3 mm
Material thickness of door/cover:	3 mm
With Lock:	yes
Transparent lid/door:	yes
Color:	gray
Protection class (NEMA):	12
