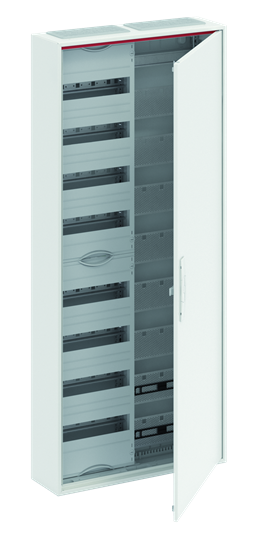

The small media distributors in the ComfortLine Compact-A series are designed for surface mounting. The distributors are used, for example, in the interior of residential and commercial buildings. The housings are supplied with a cover frame and door and have top, bottom and side cable entry options. The integrated perforated sheet mounting plate plus mounting accessories make it easy to install devices such as routers and switches. The QMS locking technology allows the expansion with distribution panels and combination sets to be implemented individually according to customer requirements. The housings meet protection class IP44. Color white RAL 9016 and powder-coated.
| Property | Value |
| Width in division units: | 24 |
| Number of rows: | 8 |
| Height: | 1250 mm |
| Width: | 550 mm |
| Depth: | 160 mm |
| Protection class (IP): | IP31 |
| Color: | white |
| Mounting type: | Surface-mounted |
| With lock: | yes |
| Transparent cover/door: | no |
| Housing material: | steel |
| RAL number: | 9016 |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 135.1 mm |
| EMC version: | no |
| With mounting plate: | yes |
| Type of cover: | door |
| Cover design: | closed |
| Inner depth: | 152 mm |
| Type of Closure: | other |
Features
HAB
CA28VM AP 2FB 8R Media
Manufacturer
HAN
2CPX052210R9999
GTIN
4011617522102
Cultivation option
Yes
Number of rows
8
Type of cover
Door
Type of closure
Other
Cover design
Closed
Width
550 mm
Width in pitch units
24
DIN rail
Yes
EMC version
No
Installation depth
135.1 mm
Color
Height
1250 mm
Internal depth
152 mm
With mounting plate
Yes
With lock
Yes
Mounting type
Surface-mounted
RAL number
9016
IP protection)
IP31
Depth
160 mm
Transparent lid/door
No
Housing material
Steel
