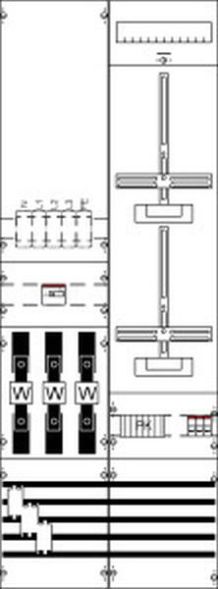

The measuring and transformer panels of the KA series with three-point fastening are designed for installation in A, U, TG and SZ cabinets. The panels are pre-wired, which ensures quick and easy installation in the cabinet. The optional busbar connector can be used to cross-wire several panels as required. Applicable standards: DIN EN 61439-10660-600-1, DIN EN 61439-20660-600-2
| Property | Value |
| Height: | 1350 mm |
| Width: | 500 mm |
| Width in modular units: | 24 |
| Design: | 2-storey |
| Connection compartment: | 300 mm |
| Number of meter spaces: | 1 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with 5-pole busbar |
| Main switch rated current: | 125 A |
| Color: | gray |
| RAL number: | 7035 |
| Protection class (IP): | IP2XC |
Features
HAB
KA4265H5 complete BH5 2FB
Manufacturer
HAN
2CPX035073R9999
GTIN
4011617350736
Connection room
300 mm
Number of meter slots
1
Version
2-storey
Width
500 mm
Width in pitch units
24
Color
Main switch rated current
125A
Height
1350 mm
With mounting plate
No
With wiring
Yes
RAL number
7035
IP protection)
IP2XC
Lower connection compartment
With busbar 5-pole
