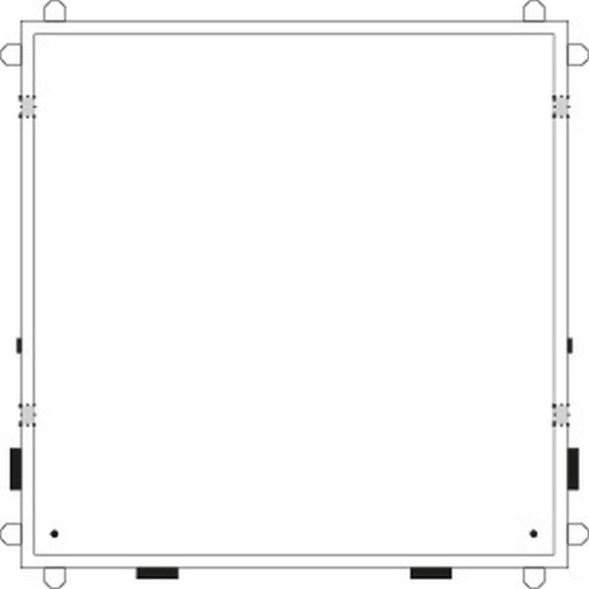

The measuring and converter cabinets of the TwinLine series are designed for surface mounting. The distributors are used indoors in, for example, functional and industrial buildings. The housings are delivered with a door and have top, bottom and side cable entry options. One advantage is the wide door opening angle of 180°. In addition, the doors can be easily removed if required. Applicable standards: DIN EN 61439-10660-600-1, color white RAL 7035 and powder-coated.
| Property | Value |
| Number of fields: | 3 |
| Height: | 800 mm |
| Width: | 800 mm |
| Depth: | 275 mm |
| Protection class (IP): | IP54 |
| Version: | eHZ |
| Material: | Sheet steel |
| With mounting plate: | no |
| Mounting type: | Surface-mounted |
| Installation width: | 800 mm |
| Installation height: | 800 mm |
| Installation depth: | 275 mm |
Features
Number of fields
3
HAB
KS4183
Manufacturer
HAN
2CPX032634R9999
GTIN
4011617326342
Version
EHZ
Width
800 mm
Installation width
800 mm
Installation height
800 mm
Installation depth
275 mm
Height
800 mm
With mounting plate
No
Mounting type
Surface-mounted
IP protection)
IP54
Depth
275 mm
Material
Sheet steel
