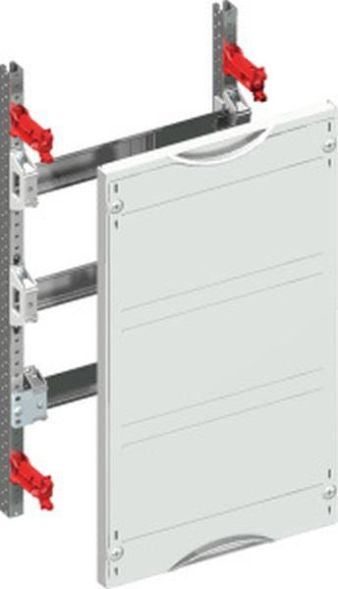

Interior fitting module, CombiLine, kit unassembled, for top hat rails for horizontal terminal blocks, locking unit 2 RE = 300 mm, field width 1 = 250 mm, 24 space units, row spacing: 150, fitting with top hat rail 35 x 7.5 mm with holes for wire holders, fixed installation, usable depth from 51 mm to 51 mm, usable width of 214 mm, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: closed, can be used from a cabinet depth of 120 mm, EDF or WR assembly frame must be ordered separately
| Property | Value |
| Width: | 250 mm |
| Height: | 300 mm |
| Max. rated current: | 850 A |
| With N-rail: | no |
| With PE-rail: | no |
| Depth: | 120 mm |
Features
Max. rated current
850 A
HAB
MBK107K terminal block module
Manufacturer
HAN
2CPX041634R9999
GTIN
4011617416340
Width
250 mm
Height
300 mm
Depth
120 mm
