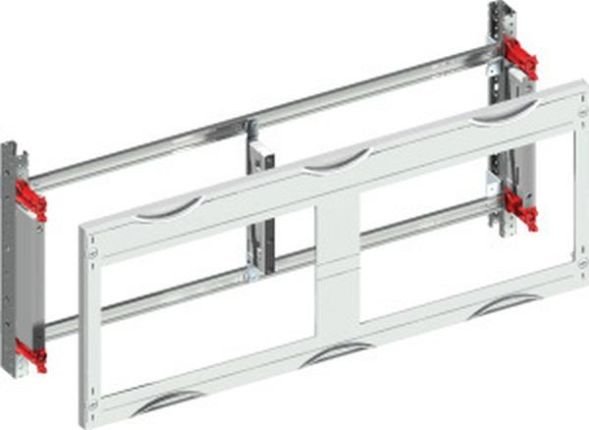

Interior fitting module, CombiLine, installed in the cabinet, for busbar system 60 mm horizontal, locking unit 2 RE = 300 mm, panel width 3 = 750 mm, 72 space units, usable width of 640 mm, unequipped for the installation of D0 and NH fuse switch disconnectors or bus-mounting fuse bases D02, E27, E33, for 3-pole busbar system, busbar alignment: horizontal, with busbar holder ZX146, busbar center distance: 60 mm, for a maximum of 3 Cu bars, (busbars must be ordered separately), rated current In max. 440 A, plastic covers, 90 degree push-turn lock, RAL 7035, cover design: with cutout, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately
| Property | Value |
| Switchable: | no |
| Number of poles: | 3 |
| Mounting type of rail system: | horizontal |
| Mounting type of D-fuse base: | busbar system |
| Fuses version: | D02 |
| Height: | 300 mm |
| Width: | 750 mm |
| Depth: | 225 mm |
| With cover: | yes |
Features
HAB
MR302 60mm
Manufacturer
HAN
2CPX041408R9999
GTIN
4011617414087
Width
750 mm
Height
300 mm
With cover
Yes
Number of poles
3
Depth
225 mm
