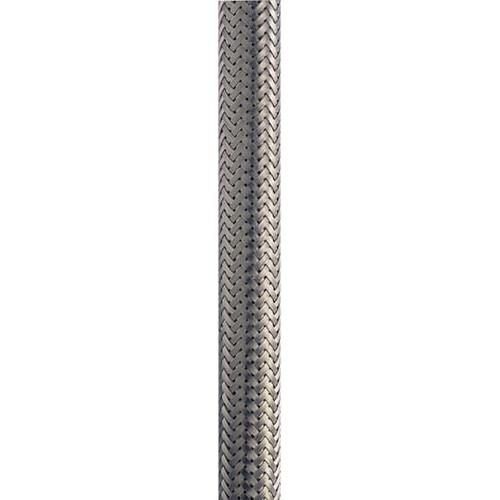

Adaptaflex cable protection type SPB flexible braided PVC IP54 (roll) 25m steel
| Property | Value |
| Nominal diameter: | 32 mm |
| Surface: | other |
| Sheathing material 1st layer: | Polyvinyl chloride (PVC) |
| Sheathing material 2nd layer (outer): | Steel wire, galvanized |
| Approval according to DIN EN 61386-23: | yes |
| Nominal size in inches: | 1 inch |
| Inner diameter: | 28.1 mm |
| Outer diameter: | 34 mm |
| Seal: | without seal |
| Compressive strength: | 1250 N |
| Operating temperature: | 700 °C |
| Tensile strength: | 1000 N |
| Bending radius, static: | 60 mm |
| Weight: | 0.5 kg/m |
| Color: | metallic |
| Hanging load: | 850 N |
| Electrical properties: | with conductive and insulating properties |
| Flame-spreading: | no |
| Use in Ex areas: | no |
| Approval according to BWB: | no |
| Approval according to VDE-EMV/emc: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Approval according to CSA: | no |
| Material: | steel |
| Protection class (IP): | IP54 |
| Bending behavior: | flexible |
Features
Inner diameter
28.1 mm
Use in Ex area
No
Bending radius, static
60 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
SPB32/25M
Manufacturer
HAN
7TCA296040R0149
GTIN
5020963006319
Outer diameter
34 mm
Operating temperature
700°C
Color
Weight
0.5 kg/m
Nominal diameter
32 mm
Nominal size in inches
Inch
Surface
Other
IP protection)
IP54
Material
Steel
