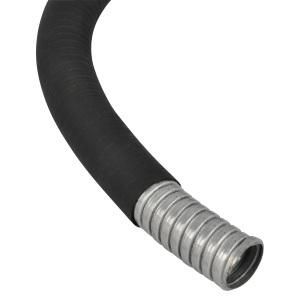

Adaptaflex cable protection type SPLHCB flexible braided liquid resistant TPR (roll) 25m stainless steel
| Property | Value |
| Nominal diameter: | 20 mm |
| Surface: | other |
| Sheathing material 1st layer: | other |
| Sheathing material 2nd layer (outer): | stainless steel wire |
| Approval according to DIN EN 61386-23: | yes |
| Nominal size in inches: | 1/2 inch |
| Inner diameter: | 15.9 mm |
| Outer diameter: | 21.1 mm |
| Seal: | without seal |
| Compressive strength: | 1250 N |
| Operating temperature: | 1350 °C |
| Tensile strength: | 2500 N |
| Bending radius, static: | 95 mm |
| Weight: | 0.4 kg/m |
| Color: | black |
| Hanging load: | 850 N |
| Electrical properties: | with conductive properties |
| Flame-spreading: | no |
| Use in Ex areas: | no |
| Approval according to BWB: | no |
| Approval according to VDE-EMV/emc: | no |
| Approval according to FI: | no |
| With approval according to UL: | no |
| Approval according to CSA: | no |
| Material: | steel |
| Protection class (IP): | IP68 |
| Bending behavior: | flexible |
Features
Inner diameter
15.9 mm
Use in Ex area
No
Bending radius, static
95 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
SPLHCB20/25M
Manufacturer
HAN
7TCA296100R0170
GTIN
5020963011955
Outer diameter
21.1 mm
Operating temperature
1350 °C
Color
Weight
0.4 kg/m
Nominal diameter
20 mm
Nominal size in inches
1/2 inch
Surface
Other
IP protection)
IP68
Material
Steel
