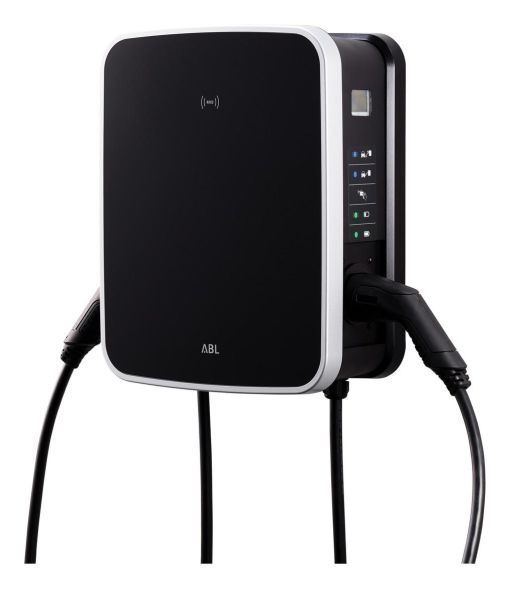

The eMH3 wallbox, which complies with legal metrology regulations, has two permanently integrated charging cables and type 2 charging connectors. Since it can charge two vehicles at the same time, it is the perfect solution for semi-public and public areas. In group installations, the eMH3 master wallbox handles all the necessary communication functions, such as billing or user management, and is connected to a backend. Thanks to the standard equipment with FI type A and DC residual current detection, the wallbox is always pre-installed and ready for connection by the installer and is immediately ready for use. The eMH3 is made in Germany and offers the highest safety standards.
| Property | Value |
| Height: | 492 mm |
| Width: | 400 mm |
| Depth: | 189 mm |
| Protection class (IP): | IP44 |
| Impact resistance: | IK08 |
| Nominal connected load: | 22 kW |
| Max. Output per charging point: | 22 kW |
| System side connection design: | 3-phase |
| Mounting type: | Wall mounting |
| Housing material: | Plastic |
| Number of charging points: | 2 |
| Number of charging couplings type 2: | 2 |
| Number of residual current devices type A: | 2 |
| Access control function: | yes |
| With energy meter: | yes |
| With house connection box (HAK) : | no |
| With Communication interface: | yes |
| With load management: | yes |
| With circuit breaker: | no |
Features
HAB
EMH3 2x11kW 32A/400V 3ph 2xType2
Manufacturer
HAN
3W2264
GTIN
4011721176314
Width
400 mm
Height
492 mm
Mounting type
Wall mounting
Impact resistance
IK08
Depth
189 mm
Housing material
Plastic
