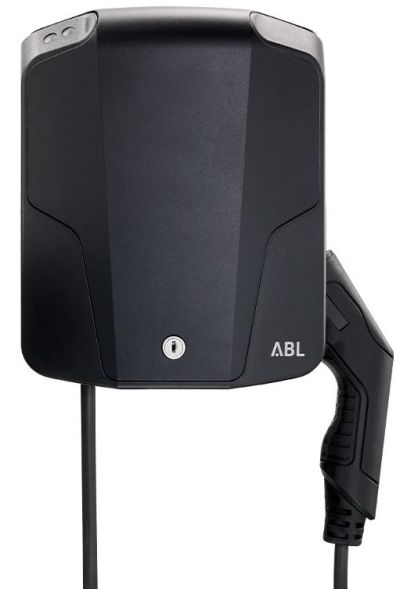

ABL Sursum eMH1 Wallbox 11kW charging station with charging cable

ABL Sursum eMH1 Wallbox 11kW charging station with charging cable - 1W1101

The Wallbox eMH1 has a permanently integrated charging cable with a Type 2 charging coupling. With its compact dimensions, the Wallbox eMH1 is the perfect solution for efficient charging of the vehicle. The Wallbox is intuitive to use and is also ideal for beginners. Thanks to the standard equipment with FI Type A and DC residual current detection, the Wallbox is always pre-installed and ready for connection for the installer. The eMH1 offers the highest safety standards and is Made in Germany.

Pre-installed and ready for connection
Highest safety standard
Space-saving housing
Weatherproof
Lockable access to the switching devices
Easy to use

The smallest charging station including a permanently integrated Type 2 charging cable. This is the ABL SURSUM eMH1 1W1101. The ABL Wallbox is suitable for private and semi-public areas. The Wallbox has an integrated residual current circuit breaker. This offers a particularly high level of safety when operating the Wallbox. DC residual current detection is installed as standard. It is very easy to use, as you can simply connect the ABL eMH1 and start charging. No complex configuration is required. The multi-colored LED shows the current operating status at any time. The Type 2 charging cable allows you to reliably charge various electric cars. The ABL SURSUM eMH1 is suitable for outdoor use thanks to IP44 (splash-proof). The scope of delivery includes the charging station, the operating instructions, the drilling template, the assembly set and 2 keys.

Connection:

Mains connection: max. 5x6 mm
Nominal voltage: 230/400 V
Nominal current: 16 A
Mains frequency: 50 Hz
Pre-fuse: 16 A is required, C characteristic is recommended
Connection terminals: Direct connection to the residual current circuit breaker

Output/vehicle connection:

Connection technology: Single charging cable with type 2 coupling in accordance with IEC62196-2
Output voltage: 230/400 V
Maximum charging current: 16 A
Maximum charging power: 11 kW

Protection/installations:

RCCB: residual current circuit breaker, type A, 30 mA
DC residual current detection: electronic, 6 mA
Load switch: contactor, 4-pole
Welding detection: triggered when the contactor is welded
Temperature monitoring: internal, reduction of the charging current or shutdown
Operating status display: LED

Ambient conditions:

Ambient operating temperature: -30 to 50°C
Relative humidity: 5 to 95%, non-condensing
Protection class: I
Overvoltage category: III
Degree of pollution: 3
Housing protection class: IP54

Information on the housing:

Housing material: plastic
Housing color: RAL9005
Color of the cover: RAL9006
The cover can be locked using an integrated lock
Dimensions: 272 x 221 x 116mm
Weight: approx. 3 kg

Scope of delivery:

Charging station
Operating instructions
Drilling template
Mounting set
2 keys
