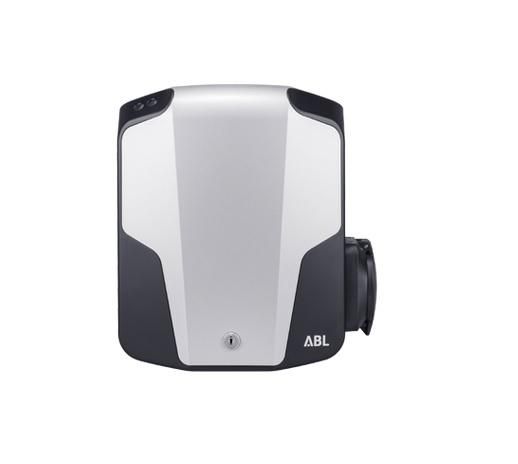

ABL Sursum eMH1 Wallbox 11kW charging station with charging socket - 1W1121, KFW eligible

ABL Sursum eMH1 Wallbox 11kW charging station with charging socket - 1W1121, eligible for KFW funding

The eMH1 wallbox has an internal type 2 charging socket. With its compact dimensions, the eMH1 is the perfect solution for efficient charging of the vehicle. Any electric vehicle can be charged with the eMH1. The wallbox is intuitive to use and is also ideal for beginners. Thanks to the standard equipment with FI type A and DC residual current detection, the wallbox is always pre-installed and ready for connection for the installer. The eMH1 offers the highest safety standards and is Made in Germany.

Pre-installed and ready for connection
Highest safety standards
Space-saving housing
Weatherproof
Lockable access to the switching devices
Easy to use

The smallest charging station with an internal Type 2 charging socket. This is the ABL SURSUM eMH1 1W1121. The ABL Wallbox is suitable for private and semi-public areas. The Wallbox has an integrated residual current device. This offers a particularly high level of safety when operating the Wallbox. DC residual current detection is installed as standard. You are very flexible with optionally available charging cables. You can choose whether you need a Type 2 to Type 2 or a Type 2 to Type 1 charging cable. You also have free choice regarding the length of the charging cable. The Type 2 to Type 2 charging cable is optionally available in lengths of approx. 4m and approx. 7m. The Type 2 to Type 1 charging cable is available with a length of approx. 4m. It is very easy to use, as you can simply connect the ABL eMH1 and start charging. No complex configuration is required. The multi-colored LED shows the current operating status at any time. As this wallbox has a charging socket, various electric cars can be charged reliably, regardless of whether they have a Type 1 or Type 2 charging socket. All you have to do is change the charging cable. The ABL SURSUM eMH1 is suitable for outdoor use thanks to IP44 (splash-proof). The scope of delivery includes the charging station, the operating instructions, the drilling template, the assembly set and 2 keys.

Connection:

Mains connection: max. 5x6 mm
Nominal voltage: 230/400 V
Nominal current: 16 A
Mains frequency: 50 Hz
Pre-fuse: 16 A is required, C characteristic is recommended
Connection terminals: Direct connection to the residual current circuit breaker

Output/vehicle connection:

Connection technology: Single charging socket type 2 with locking in accordance with IEC62196-2
Output voltage: 230/400 V
Maximum charging current: 16 A
Maximum charging power: 11 kW

Protection/installations:

RCCB: residual current circuit breaker, type A, 30 mA
DC residual current detection: electronic, 6 mA
Load switch: contactor, 4-pole
Welding detection: triggered when the contactor is welded
Temperature monitoring: internal, reduction of the charging current or shutdown
Operating status display: LED

Ambient conditions:

Ambient operating temperature: -30 to 50°C
Relative humidity: 5 to 95%, non-condensing
Protection class: I
Overvoltage category: III
Degree of pollution: 3
Housing protection class: IP44/IP54 (plugged/unplugged)

Information on the housing:

Housing material: plastic
Housing color: RAL9005
Cover color: RAL9006
The cover can be locked using an integrated lock
Dimensions: 272 x 221 x 116mm
Weight: approx. 3 kg

Scope of delivery:

Charging station
Operating instructions
Drilling template
Mounting set
2 keys
