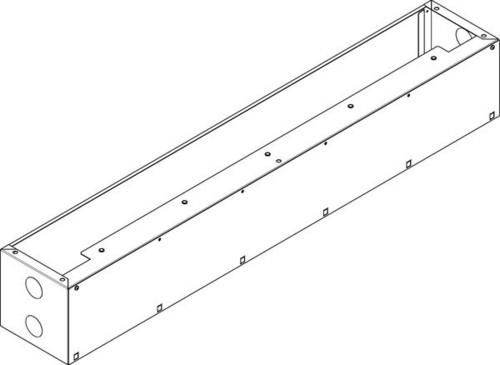

Additional base, height: 200 mm. External dimensions W x H x D (mm) 1300 x 200 x 210. Width 5. Additional base, height 200 mm. Protection class II (SF series), protection class I (SV series). Protection type: IP43. For devices up to 630 A. Floor mounting with internal fastening or external fastening. Widths: 300, 550, 800, 1050, 1300 mm. Height: 1980 mm including 130 mm base, assembled. Depth: 210 mm. Color: RAL 9016 (traffic white). Space units: 144 to 720. Material: 1.5 mm sheet steel (door 1 mm), powder-coated. Pre-punched on both sides for M6 housing connections. Cable entries 2K membrane flange bottom 35x, top 35x per field. Can be combined horizontally and vertically. Door inside, can be hinged on the right or left, without tools. can be dismantled and adjusted with an opening angle of 110°, lock. can be sealed as standard, 3-point rod lock. Prepared for the installation of standardized module kits on NT support profiles or for continuous mounting plates. DIN EN 61439-1 (VDE0660 Part 600-1).
| Property | Value |
| Height: | 200 mm |
| Width: | 1300 mm |
| Depth: | 210 mm |
| Suitable for housing width: | 1300 mm |
| Suitable for housing depth: | 210 mm |
| Suitable for cable routing: | yes |
| Color: | gray |
| Suitable for ventilation: | no |
| Version: | Base complete |
| Material: | Steel |
| Suitable for outdoor installation: | no |
| Max. load capacity: | 550 kg |
