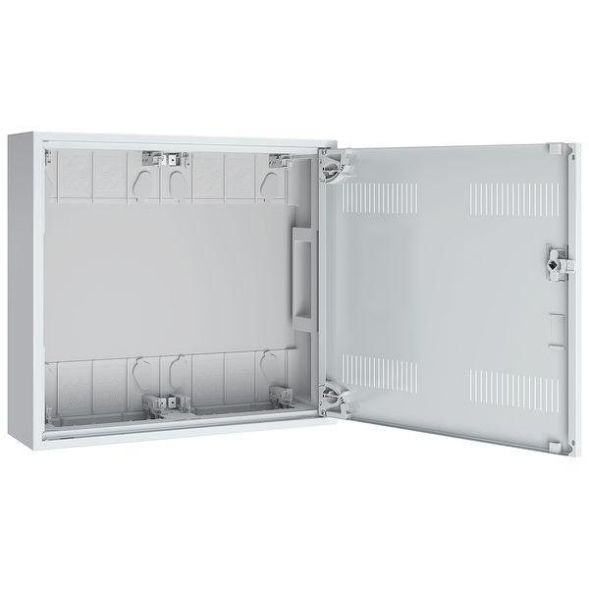

Surface-mounted field distributor, with door including ventilation slots, external dimensions WxHxD (mm) 550 x 500 x 160, width 2, height 3, PLE 72, surface-mounted field distributor, MK, RM series, depth: 160mm, protective insulated, protection class II, protection type: IP43, for devices up to 250 A, colour: RAL 9016 (traffic white), powder-coated, installation: surface-mounted and partially recessed with internal fastening, or external fastening, material: 1 mm sheet steel (housing and door), powder-coated, cable entries: 2K membrane flange at the bottom and top 35x per field, internal door with opening angle 110°, standard lock can be sealed as standard, prepared for various locking types, tested according to DIN EN 61439-1 (VDE0660 Part 600), ML series, Empty housing including door in four different designs, prepared for the installation of complete fields or for continuous mounting plates,
| Property | Value |
| Width in division units: | 24 |
| Number of rows: | 6 |
| Height: | 500 mm |
| Width: | 550 mm |
| Depth: | 160 mm |
| Protection class (IP): | IP43 |
| Color: | white |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | steel |
| RAL number: | 9016 |
| DIN rail: | no |
| Mounting option: | yes |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | door |
| Cover design: | with cutout |
| Inner depth: | 95 mm |
| Type of closure: | other |
